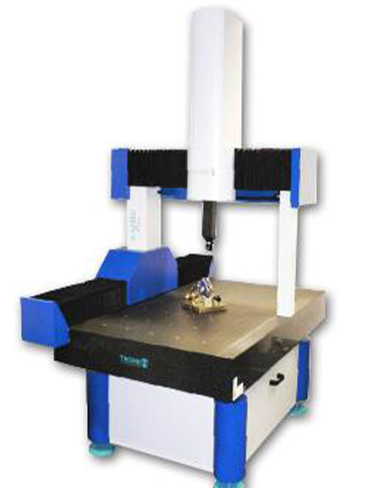

3D-measuring machine RAPID/RAPID Plus CNC
Granite guide ways of highest quality secures high thermal stability, precision and mechanical rigidity. Through the high precision of the guides and the high quality of the surfaces the air consumption of the air bearings is minimized. Completely encompassed guide ways optimize the repeatability of the measuring results.
Joystick MCU Lite from Renishaw with function keys and speed regulation.
Double passive vibration damping is integrated in the support frame as a standard.
Probe Heads from RENISHAW
a) TP8 manual, swingable probe head with M3 thread. Must be recalibrated after turning and rotation.
b) RTP20 Probe head manual-automatic, rotate- and swingable probe head with TP20 probe and 1 module. Turns and rotate by using a ball rod.
Probe changer MCR 20 Usable with the RTP20 for full automatic system operation. Stores up to 6 probe modules
10 piece stylus box.
User Friendly Inspection Software “CAPPS”:
a.) CAPPS PS
Measuring of geometrical elements with graphical analyses. All the elements are displayed on the screen. Generate inspection reports automatically with text and graphics. No CAD import available.
b.) CAPPS BASIC Plus
CAD import available. Measuring of geometrical elements against CAD model. Digitize and scan curves from parts. 3D graphical display of all measured and nominal features. GD&T Tolerance and Report Generation.
Machine Delivery Contains:
- 3D-Coordinate Measuring Machine RAPID CNC - MPEe=2,2+L/350, MPEp=2,5μm
- CNC-control unit and Joystick from RENISHAW
- DELL PC with newest configuration, WINDOWS XP, 20" TFT monitor, colour printer from Dell, 3 years warranty
- a.).Manual rotate- and swingable probe head TP8 /
b.) Probe head RTP20 inclusive TP20 probe and 1 module - 10 piece set of M2 stylus in a box, 1 calibration ball Ø25 with M8 thread
Further you will receive the following equipment according to your requirements:
| BASIC | STANDARD | LUXUS |
Changer | No | No | MCR20 changer |
Probe | TP8 | TP8 | RTP20 |
Software | CAPPS PS | CAPPS BASIC + | CAPPS BASIC + |
Measuring area 700x500x400mm |
|
|
|
|
|
|
|

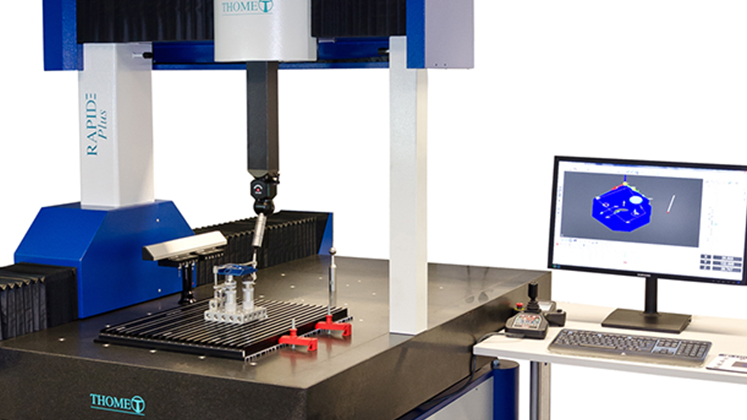

3D-measuring machine “RAPID/RAPID Plus” CNC
Highest precision, robust design, thermal stability and high rigidity
It is achieved thanks to the use of fine materials such as granite or ceramic. Optimized air bearings secure great mechanic precision.
Great diameter of the quill
Thus the rotation round the Z axis is prevented. Ideal for the use of long contact tips. Besides that a fine controlled pneumatic balancing of Z axis weight.
Belt drive at all axes
High rigidity and low wear. Low maintenance requirements.
Modern, flexible contact systems
High rigidity and low wear. Low maintenance requirements.
Enclosed guiding route
Protection against damage and direct temperature impacts.
Double passive dampening of vibrations
Integrated directly in the machine frame. Thus the machine may be suitably positioned close to production. Active vibration dampening by pneumatic spring insulators also possible.
Merits of our machine:
- Calculated sections guarantee highest rigidity, dynamism and constant precision
- Guiding parts of natural granite of the highest quality secure protection against temperature impacts on guidance precision and long-term stability
- Besides high precision the optimized air bearings also guarantee fluent operation with low wear and vibration damping
- Compensation of quill weight by precision controlled pneumatic cylinder
- Systems of distance measuring: photoelectric light system by RENISHAW
- Resolution 0.0005mm
- Feed speed max. 530mm/s
- Acceleration max. 1400mm/s
Flexibility of measuring range in all axes
Our coordinate measuring machines RAPID / RAPID Plus are characterised by the highest precision, compactness and low maintenance demands. The machines come equipped with precise optimized granite guides. Ceramic guides of the highest quality may be supplied on request.
In this way the measuring machine acquires dynamics and rigidity.] Thermal stability and high guiding precision provide for the most precise measuring results even without substitution of software compensation. Double passive vibration absorbers are standardly integrated in machines. Machines can be delivered with pneumatic spring insulators upon customer’s request. This allows dampening of especially low frequency oscillations.
Reliability and precision for top price
Air bearings are enclosed as standard. Thus the guides are protected against damage, dirt and direct temperature impact. High-dynamic servo-motors and highly rigid belt drives guarantee optimal positioning behavior. These factors make our machines ideal for scanning. Our machine design system enables various combinations of axes lengths. We shall be pleased to make a machine according to your individual requirements.
Technical Data:
Measuring Area | RAPID | RAPID Plus | ||||||
X-Axis [mm] | 600 | 700 | 800 | 900 | 800 | 1000 | 1200 | 1500 |
Y-Axis [mm] | 500 | 600/700 | ||||||
Z-Axis [mm] | 400 | 500/600 | ||||||
Weight [kg] | 550 | 600 | 800 | 980 | 1100 for Y = 600 | 1300 for Y = 600 | 1500 for Y = 600 | 1700 for Y = 600 |
Max.workpiece weight [kg] | 450 | 480 | 500 | 550 | 550 | 600 | 650 | 700 |
Length [mm] | 1360 | 1460 | 1560 | 1660 | 1681 | 1881 | 2081 | 2381 |
Width [mm] | 1035 | (for y 600) 1171, (for y 700) 1271 | ||||||
Height (H) [mm] | 2230 | 2460 / 2660 | ||||||
Table height (A) [mm] | 800 | |||||||
Measuring accuracy[μm] | according to ISO 10360-2: MP EE=2.2 + (L/350) ; MPEP=2.2 with TP200 | |||||||
Resolution | 0.0005mm | |||||||
Calibration speed | 0 to 80mm/s | |||||||
Temperature necessary to secure accuracy | 20°C +/-2°C, max. 1°C / hour, 1,5°C / day | |||||||
Air consumption | 25 l/min, pre-cleaned air – quality according to ISO 8573 class 2 | |||||||
